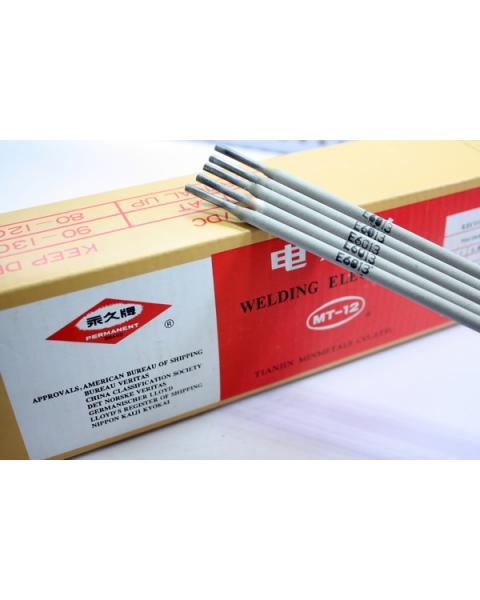

MT-12 (AWS E6013)
MT-12 CORRESPONDING TO AWS E6013
JIS D4313
PERMANENT BRAND
ELECTRODE FOR WELDING MILD STEEL
Description:
MT-12 is low carbon steel type electrodes with titania coating. It has excellent welding technological performances. The arc is stable and the spatter loss is negligible. The slag is fluid and when hardened it is compact and easy to remove. The welds have smooth appearance. It is suitable for all position welding of steel sheets and irregular joints even under unfavorable conditions.
Applications:
For welding structures of steel sheets, vehicles, buildings, vessels, machinery-manufacture and various structures of low carbon steel.
Chemical Composition of Weld Metal (%)
| C | Mn | Si | S | P | |
| AWS STANDARD | ≤0.20 | ≤1.20 | ≤1.00 | N.S. | N.S. |
| TYPICAL | 0.09 | 0.40 | 0.20 | 0.015 | 0.019 |
Mechanical Properties of Weld Metal
Yield Strength Mpa | Tensile Strength Mpa | Elongation (%) | Charpy V Impact Value (0°C) | Bend Test (Degree) | |
| AWS STANDARD | ≥330 | ≥430 | ≥17 | N.S. | N.S. |
TYPICAL | 400 | 490 | 29 | 70J | 180 |

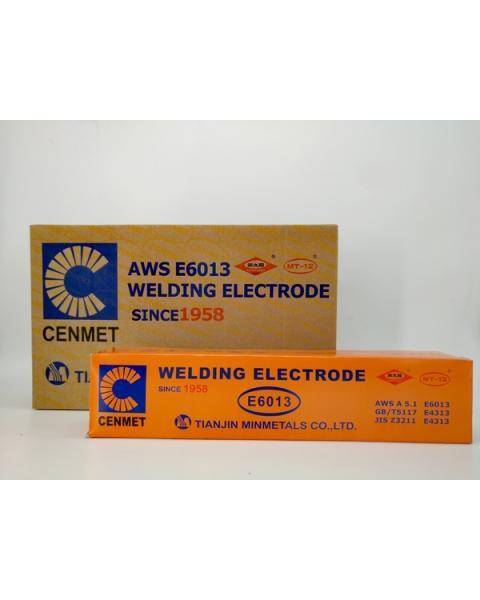

Packing: in cartons of 20kgs net each, consisting of 8boxes x 2.5kgs for size 2.5mm and 4boxes x 5kgs for other sizes. Then on pallets or without pallets are at the buyer's option.
